PTFE, PFA, FEP Lined Pipes & Fittings

Technical Specifications
PTFE LINED PIPES
PTFE LINED ELBOWS

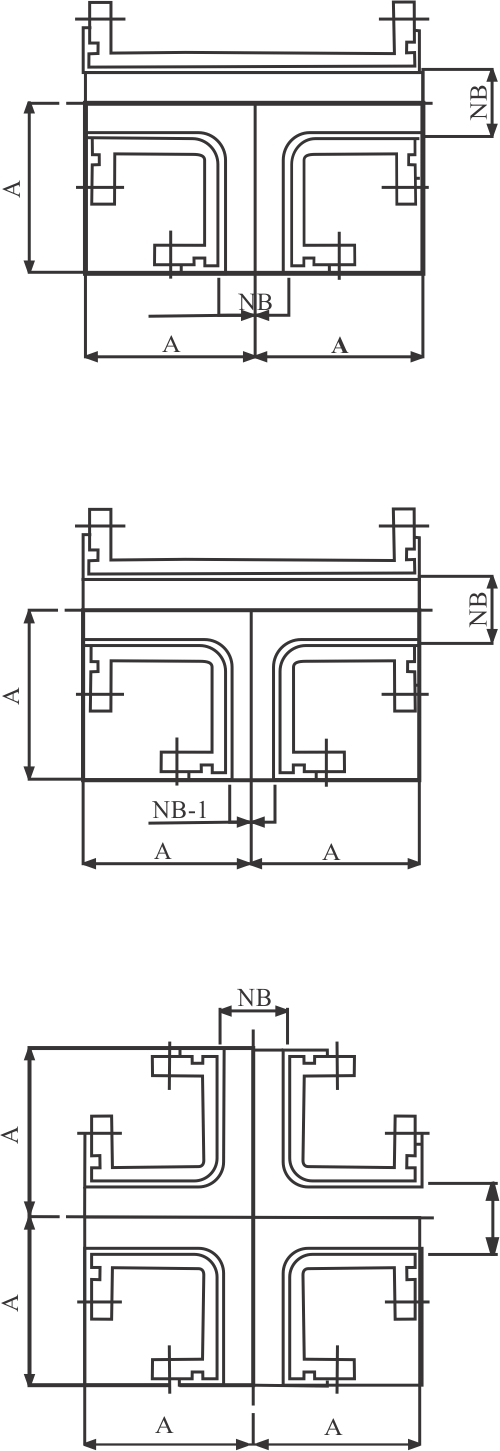

PTFE / FEP LINED EQUAL TEE, REDUCING TEE, CROSS
PTFE / FEP LINED REDUCERS

Products Include

1. PTFE lined Dip pipe / Sparger
2. PTFE lined steel pipes & fittings
3. PTFE bellows for pressure / vacuum applications
4. Nozzle liners / solid bush
5. PTFE lined envelop gaskets
6. FEP/PFA lined valves

ANSI / ASTM Pipe And Fittings Standards

Carbon Steel Pipe

CS pipes material are seamless or welded conforming to ASTM A 106 Gr.B / ASTM A53 in standard wall thickness.

Stainless Steel Pipe

SS pipes material are 55304, seamless ASTM A213, schedule 40 wall thickness.

Flanges

Flange material is as per ASTM A 105 and for DIN/BS 10 standard. Flange is made from plate material 152062 Gr. -A. Stainless steel flange is as per ASTM A 182.

Fittings

Fittings are fabricated from pipe or alternatively ductile iron casting conforming to ASTM A395, casting grade. Flange material ASTM A 105 (optional)

Design Standard

Flanges for lined products shall have ANSI class 150 bolt circle diameters, bolt hole diameter and numbers of bolt holes in accordance with ANSI 816.5, unless otherwise specified flanges are ductile iron as per ANSI B 16.42. Fittings shall have ANSI class 150 face to centerline dimensions in accordance with ANSI B 16.42 unless otherwise specified. No welding shall be done on pipe components in the field. All lined pipes and fittings shall generally conform to ASTM F1545.

Application

Temperature PTFE:
Maximum continuous service temperature 200° C. Melting temperature 327° C.
PFA: Maximum service temperature 200° C. Melting temperature 305° C.
FEP: Maximum service temperature 160° C. Melting temperature 260° C.
Pressure Rating As per ANSI B 16.5, 150 lbs.

Chemical Resistance

The well known PTFE / PFA / FEP is chemically inert to most of the chemicals and solvents with the exception of molten alkali metals. PTFE can be used with aggressive media such as hydrofluoric acid, fluoric acid, fuming sulphuric and nitric acid hot sodium hydroxide solutions and chlorine gas, hydrogen and nitric oxides.

Operating Pressure

PTFE lined pipe work can be used upto 20 bar I 300 psi.g. Full vacuum resistance depending upon the process conditions. Details to be provided by client for specific applications. Resistance to Light & Atmospheric Conditions PTFE may be used without any problem in the open air and there are no mechanical and electrical characteristics even then subject to extreme climatic conditions.

Electrical Properties

PTFE has goods electrical insulations with a very low dielectric constant. * Specifications are subject to change without notice. Dimensions are indicative and informative only.

Inspection

Dimensional check: As per standard:
Hydro Test
All 150 class pipes and fitting shall be tested at 25 bar after lining and 46.5 bar for 300 class pipes and fittings.
Electrostatic Test A test voltage of 15 kv to 25 kv depending upon liner thickness.

NB		Lining Thickness	D4	D	K	No. of Holes x Dia of Holes	Length max.	B1
MM	Inches
20	1	3	50.8	108.0	79.4	4 x 15.9	3000	14.5
40	1.5	3	73.0	127.0	98.4	4 x 15.9	3000	17.5
50	2	3	92.1	152.4	120.7	4x 19	3000	19.5
80	3	3.5	127.0	190.5	152.4	4 x 19	3000	24.0
100	4	4.5	157.2	228.6	190.5	8 x 19	3000	24.0
150	6	5	215.9	279.5	241.3	8 x 22.2	3000	25.5
200	8	7	269.9	342.9	298.5	8 x 22.2	3000	29.0
250	10	8	323.9	406.4	362.0	12 x 25.4	3000	30.5
300	12	8.5	381.0	482.6	431.8	12 x 25.4	3000	32.0

NB	R1	R2
25	89	45
40	102	57
50	114	64
80	140	76
100	165	102
150	204	127
200	228	140
250	279	165
300	305	190

NB		NB1	A
MM	Inches
25	1	25	89
40	1.5	40	102
50	2	50	114
50	2	50	114
80	2	50	114
80	3	30	140
80	3	80	140
80	3	80	140
100	3	100	140
100	4	100	165
100	4	100	165
100	4	100	165
100	4	100	165
150	4	150	165
150	6	150	203
150	6	150	203
200	6	200	203
250	8	250	229
300	10	300	305

J	K	L	T
25	20	114	35
40	25	114	35
50	25	127	35
50	40	127	35
80	25	152	35
80	40	152	45
80	50	152	45
100	25	178	45
100	40	178	5
100	50	178	45
100	80	178	45
150	25	229	54
150	40	229	54

J	K	L	T
150	50	229	54
150	80	229	54
150	100	229	54
200	80	279	54
200	100	279	54
200	150	279	54
250	100	305	54
250	150	305	54
250	200	305	54
300	150	356	54
300	200	356	54
350	300	406	60

NB	R1	R2
25	89	45
40	102	57
50	114	64
80	140	76
100	165	102
150	204	127
200	228	140
250	279	165
300	305	190

J	K	L	T
25	20	114	35
40	25	114	35
50	25	127	35
50	40	127	35
80	25	152	35
80	40	152	45
80	50	152	45
100	25	178	45
100	40	178	5
100	50	178	45
100	80	178	45
150	25	229	54
150	40	229	54

J	K	L	T
150	50	229	54
150	80	229	54
150	100	229	54
200	80	279	54
200	100	279	54
200	150	279	54
250	100	305	54
250	150	305	54
250	200	305	54
300	150	356	54
300	200	356	54
350	300	406	60

NB	R1	R2
25	89	45
40	102	57
50	114	64
80	140	76
100	165	102
150	204	127
200	228	140
250	279	165
300	305	190

J	K	L	T
25	20	114	35
40	25	114	35
50	25	127	35
50	40	127	35
80	25	152	35
80	40	152	45
80	50	152	45
100	25	178	45
100	40	178	5
100	50	178	45
100	80	178	45
150	25	229	54
150	40	229	54

J	K	L	T
150	50	229	54
150	80	229	54
150	100	229	54
200	80	279	54
200	100	279	54
200	150	279	54
250	100	305	54
250	150	305	54
250	200	305	54
300	150	356	54
300	200	356	54
350	300	406	60

NB	R1	R2
25	89	45
40	102	57
50	114	64
80	140	76
100	165	102
150	204	127
200	228	140
250	279	165
300	305	190

J	K	L	T
25	20	114	35
40	25	114	35
50	25	127	35
50	40	127	35
80	25	152	35
80	40	152	45
80	50	152	45
100	25	178	45
100	40	178	5
100	50	178	45
100	80	178	45
150	25	229	54
150	40	229	54

J	K	L	T
150	50	229	54
150	80	229	54
150	100	229	54
200	80	279	54
200	100	279	54
200	150	279	54
250	100	305	54
250	150	305	54
250	200	305	54
300	150	356	54
300	200	356	54
350	300	406	60
